is there a perfect architectural shape

Discussion in 'Architecture & Engineering' started by river, Sep 30, 2012.

  1. river Valued Senior Member

    Messages:
    9,206
    I'm thinking that it is the octagon ?

    thoughts

  2. Google AdSense Guest Advertisement



    to hide all adverts.
  3. tashja Registered Senior Member

    Messages:
    715
    I don't think so, no.

  4. Google AdSense Guest Advertisement



    to hide all adverts.
  5. kaduseus melencolia I Registered Senior Member

    Messages:
    213
    Perfect in what way? Esoterically?
    To a building engineer I suppose it would have to be a box of any dimensions, bricks, planks, sheets, beams, etc....
    For someone metaphysically harmonious, it would have to be something curved, preferably in black.

    Please Register or Log in to view the hidden image!


  6. Google AdSense Guest Advertisement



    to hide all adverts.
  7. Jeeves Valued Senior Member

    Messages:
    1,595
    Perfection depends on the purpose, no? If you want to save material, the geodesic dome is pretty good; if you want long straight walls for internal fixtures, a rectangle would be better; if you want to inspire awe, something tall and graceful; if fear, something squat and massive; if comfort, something with soft curves.

    This is pretty cool [video=youtube;A-cfB6xFSKM]http://www.youtube.com/watch?v=A-cfB6xFSKM&feature=related[/video]

  8. Buddha12 Valued Senior Member

    Messages:
    2,862
    There are some that would be called perfect for they were made from materials that were all found around where the abodes were made and some abodes were movable to be able to relocate to a new area. The thing that is similar with them is that they are rounded in shape to allow wind to easily pass around them .

    Please Register or Log in to view the hidden image!




    Please Register or Log in to view the hidden image!




    Please Register or Log in to view the hidden image!

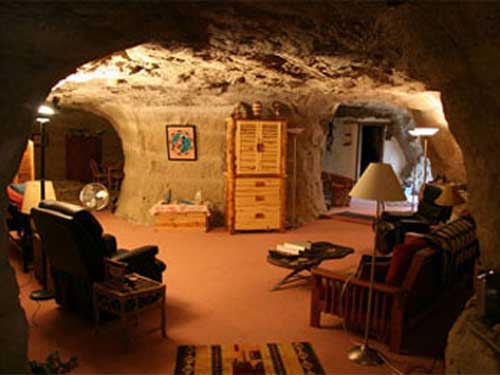

    And then a cave dwelling which is really the best of them all for it remains about the same temperature without and electricity all year round.

    Please Register or Log in to view the hidden image!


  9. Billy T Use Sugar Cane Alcohol car Fuel Valued Senior Member

    Messages:
    23,198
    Yes. - Hard to beat the "Bucky* sphere" section, which can scale to any size, cover an entire city which excludes air pollution sources, etc. if desired. Least material used for covered area with no internal posts, etc. Very efficient if set on ~7 foot high section of thin concrete wall** cylinder (that has steel hoop for the outward stress) as the humans can stand anywhere inside the enclosed space. Sheds rain, snow or wind well. This one covers 5.1 acres and gets a lot of snow as is "Superior Dome Stadium" of Northern Michigan Univ. at Marquette, Michigan, USA, 160 m (525 ft diameter. I´m not sure if that is the Bucky ball diameter or be the base on earth diameter. But as it overs the 5.1 acres, you could determine which, if not as lazy as I am.) I think the more conventional pointed roof at top dead center prevents snow and ice build up where dome´s surface is horizontal, and helps make window controlled draft for natural, no energy use, ventilation. Note the fresh air entry vents, just above the tree tops, have sharp tops too. That is tiny part of northern Lake Michigan in photo foreground. I bet in dead of winter you can drive your car on the ice along the shore line.

    Please Register or Log in to view the hidden image!



    *Invented by Mathematician & Architect Buckminster Fuller - See wiki for more. Nature likes / uses Bucky Fullerenes too. Here is structure of a 60 carbon one:

    Please Register or Log in to view the hidden image!

    The 2D versions we call "nano tubes." **Wall a ring only for top foot or so - inverted U openings for least concrete and access.

    Last edited by a moderator: Oct 1, 2012
  10. KilljoyKlown Whatever Valued Senior Member

    Messages:
    6,493

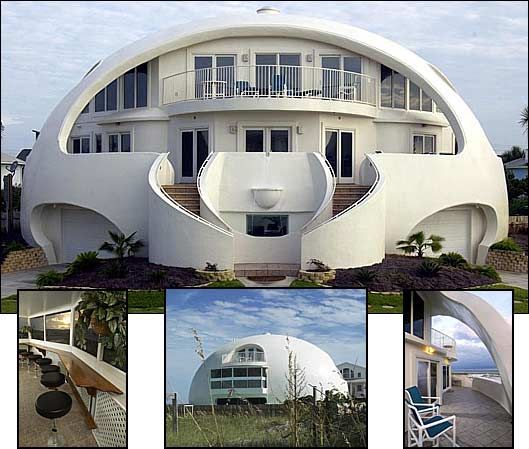

    I believe you are referring to geodesic buildings. I like this dome beach house.

    Please Register or Log in to view the hidden image!

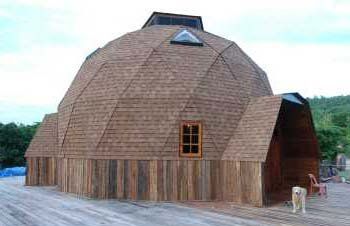

    But this one looks like it has some great amenities.

    Please Register or Log in to view the hidden image!

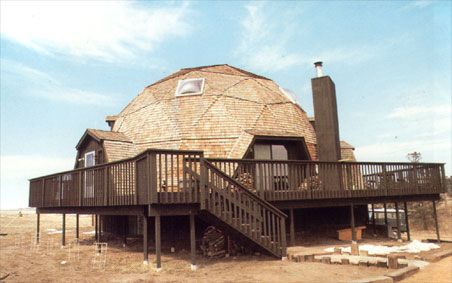

    This one is cool because the first floor has vertical walls.

    Please Register or Log in to view the hidden image!



    When I lived in California many years ago I thought about building a dome home. Even visited a guy that built his own dome home. The master bedroom was an open second floor loft and he had triangular windows arranged in a pattern from floor to top of the roof. It was only a 30 foot dome, so there was not a lot of space. I was thinking a 45 footer would have been cool, but never got around to doing it.

  11. R1D2 many leagues under the sea. Valued Senior Member

    Messages:
    2,300
    In 6th grade I remember a teacher who asked us this. His answer I won't forget. He said the X. It is used in bridges. An supports a lot of weight. Also you can find it in many other places. But its the X.
    I tend to agree. Even this image from above http://www.nanotech-now.com/images/buckyball2-sm.gif has the X shape in it.

  12. Billy T Use Sugar Cane Alcohol car Fuel Valued Senior Member

    Messages:
    23,198
    That is same image I gave at end of my post 6, but it has no Xs. It has open sided triangles or Ys. Look again. Sometimes the open Ys are closed (to have the 3 sides of an triangle) to inscribe an equilateral triangle. In some cases, but not as described by Buckminster Fuller, that same "ball" structure is ONLY the hexagons. The adjoining hexagon ball (with some squares?) is the official form of a football (soccer ball to Americans) now.

  13. hardalee Registered Senior Member

    Messages:
    341
    I'd say the triangle. When you have a rectangle, it is unstable and can deform from in plane forces while not changing its lengths, only angles. It can collapse. When you place a diagonal in the rectangle, it is stable and cannot collapse except by over stress of the individual components.

  14. KilljoyKlown Whatever Valued Senior Member

    Messages:
    6,493
    You know what they say about a picture.

    Please Register or Log in to view the hidden image!


  15. Billy T Use Sugar Cane Alcohol car Fuel Valued Senior Member

    Messages:
    23,198
    Thanks. I knew that the ball could not be all hexagons as they fill a plane.* So I added "(with some squares?)" but as your photo shows, pentagons are what is needed to curve it into a ball.

    * There is a relative small set of shapes with straight line sides that will "fill" a plane. Obviously equilateral angles, squares, or regular hexigons (including clever distortion of them like Etcher made) will but there a few more with straight (but not equal length)* sides. The head of APL´s space department found a new one only about 30 years ago.

    *Rectangles will, but I think they are considered to be "distortions" of the square by topologists, not really a new "plane filler."

  16. R1D2 many leagues under the sea. Valued Senior Member

    Messages:
    2,300
    So I saw the picture wrong. I still say the X is the perfect architectural shape.

  17. X-Man2 We're under no illusions. Registered Senior Member

    Messages:
    403
    R1D2,

    Might you have some examples of X to share? I'd like to know more about your X reasons,Thanks Tim....

  18. R1D2 many leagues under the sea. Valued Senior Member

    Messages:
    2,300
    Hi Tim,
    I am actually just starting a new search. The last one was unsuccessful. I didn't find what I wanted.
    I hope to have more to add by tonights end.

  19. R1D2 many leagues under the sea. Valued Senior Member

    Messages:
    2,300
    Well I still think the X. Is the shape I have used it before in welding. An I have seen it in structures. Basically a triangle shape with one upside down on top. A hourglass form if used right can be very strong.
    Even though this information I am adding is not a X shape it to is strong.
    http://www.teachersdomain.org/assets/wgbh/phy03/phy03_img_lpastraw/phy03_img_lpastraw.gif
    And this will give you plenty to try. An plenty to see.
    http://blogs.asee.org/goengineering/wp-content/uploads/2008/12/291e_exit5.jpg
    http://teachers.egfi-k12.org/lesson-design-and-build-a-road-sign-support/

  20. Jeeves Valued Senior Member

    Messages:
    1,595
    An X is two triangles, so maybe twice as good. I like the arch, but think the triangle beats it for efficiency.

  21. Billy T Use Sugar Cane Alcohol car Fuel Valued Senior Member

    Messages:
    23,198
    No an X is not even one triangle. Triangles have 3 sides, two triangle would need 6 side an X has either 2 or 4 if both equal length parts of the straight sections are counted separately. Another property of all triangles that the X does not have is a triangle divides the plane into two distinct regions -the inside and the outside.

    This is not to say that Xs are not used in construction - they are. If placed inside a square (or rectangle) they help it keep its shape but a single diagonal bar does that also at half the cost. Costwise twice better than the X.

  22. hardalee Registered Senior Member

    Messages:
    341
    The X shape is used in construction as "X bracing" , often seen on the outside of tube type buildings, but in these cases, the X has a top and a bottom which is normally a floor or spandrel beam.
    This is what makes the X stable, it is composed of 4 triangles. The X by itself is unstable.

  23. spidergoat Valued Senior Member

    Messages:
    51,740
    Yes, the rectangle.
